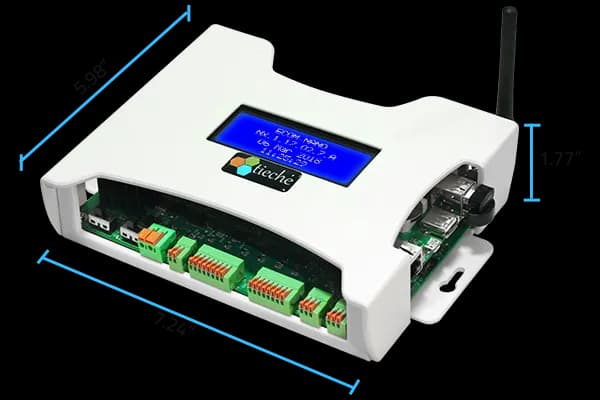

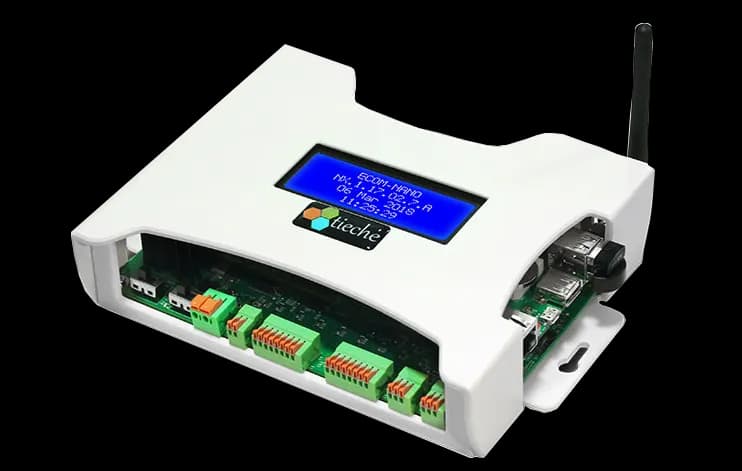

ECOM NANO
- Web Based Programmable Controller
- On-Board Graphics Support
- WiFi & Bluetooth Connectivity
Scroll down
STANDALONE FACILITIES MANAGEMENT SYSTEM
ECOM NANO is a Web-based programmable controller that combines the convenience of web access with real-time onboard control & data logging to provide a cost efficient and powerful solution for managing your facility systems. ECOM NANO can be set up as a standalone facilities management system or integrated to any IT or BAS platform by means of XML communications.
EXPANDABLE WITH ADDITIONAL I/O MODULES

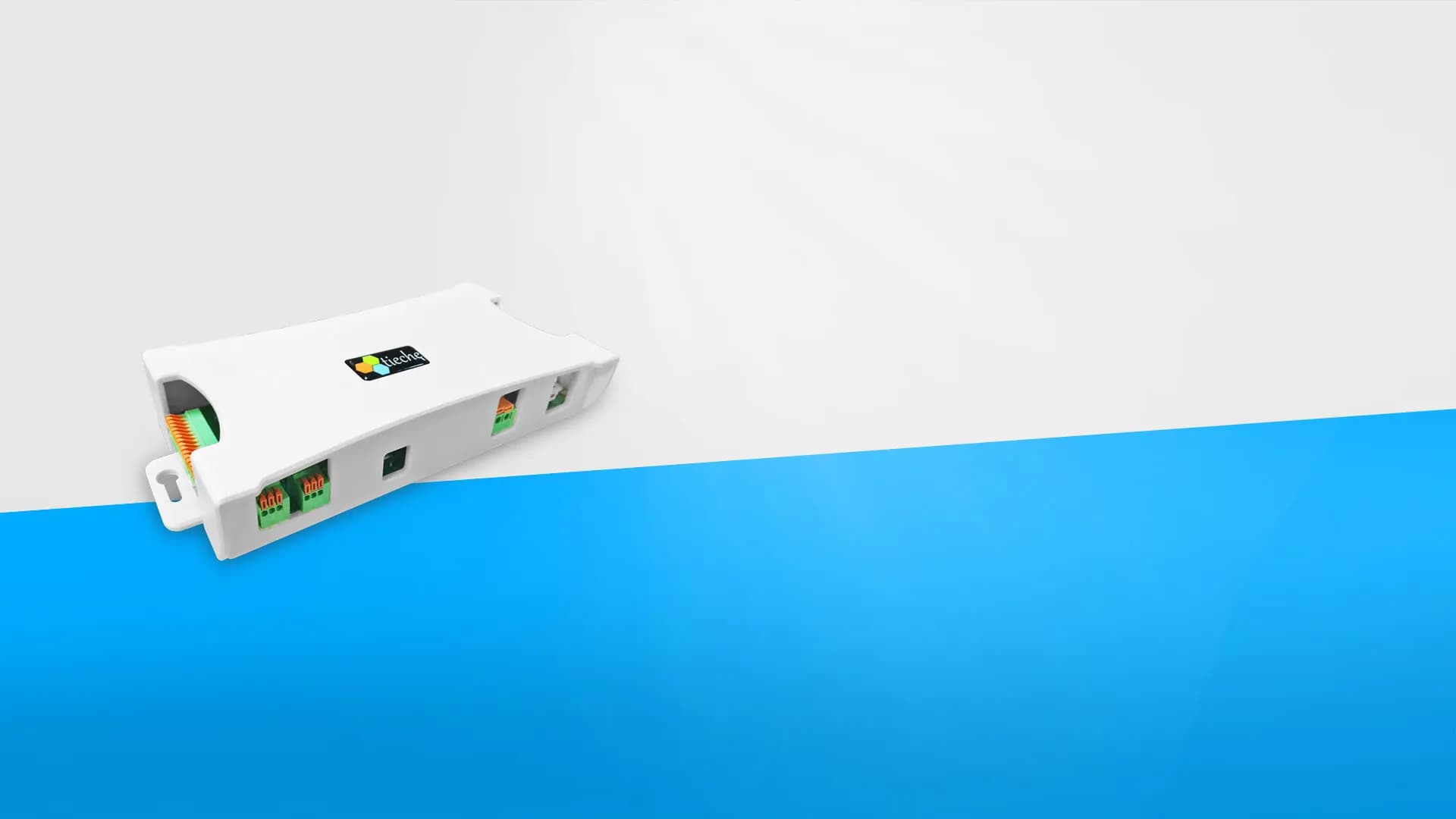

ECOM NANO has an expandable hardware architecture that allows for cost-effective scaling of the system cost for diverse applications. Users can expand the point capacity by adding additional I/O modules. In addition, it supports a host of other interfaces including hard-wired Modbus RTU, USB, RS485, along with WiFi and GSM for wireless communications.
ENHANCED DATA LOGGING
ECOM NANO is technology rich with built-in Ethernet ready hardware and TCP/IP stacks that enable the controller to be accessible across a LAN, WAN and the internet. It is preloaded with technologies such as HTML, XML data exchange, Modbus RTU, USB, RS485, WiFi, GSM and SNMP. The built-in switching tables allow for control of digital channels using custom, complex programming conditions. The system supports data logging as well as email and SNMP notifications.
THIRD PARTY INTEGRATION WITH MODBUS

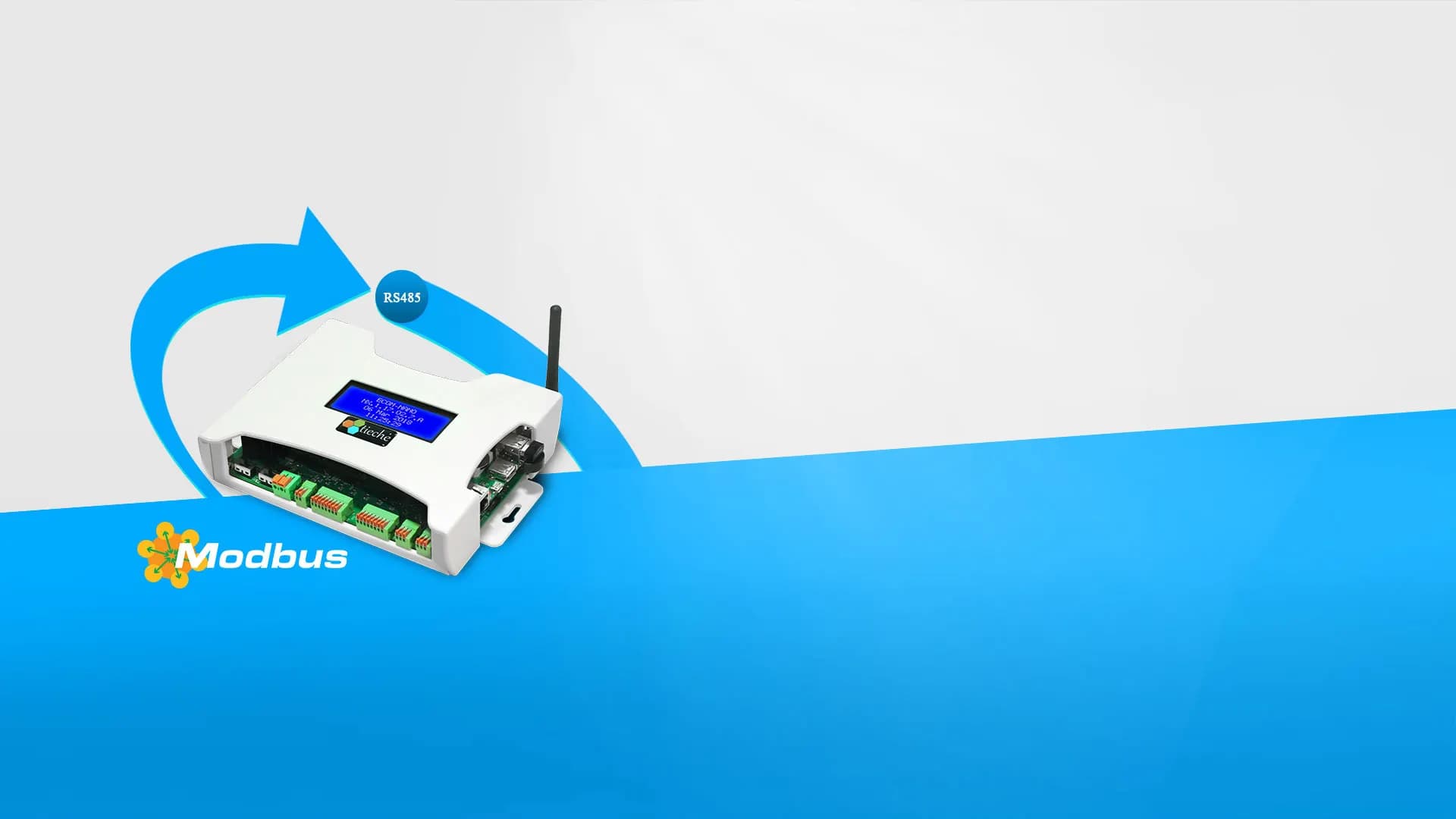

ECOM NANO has a built-in Modbus server that allows for communication with other Modbus enabled devices. Users can configure multiple Modbus devices under ECOM NANO and use it along with ECOM NANO control logic.
Inputs
- 4 Thermistor /Dry Contact
- 4 Universal (0-5V, 0-10V, Digital)
Outputs
- 4 Analog (0-10V)
- 8 Digital (10V)
COMMUNICATION
- TCP/IP (Wired/Wireless)
- RS485
- GSM
- Bluetooth
- SNMP
EXPANDABLE ARCHITECTURE FOR ADDITIONAL I/O

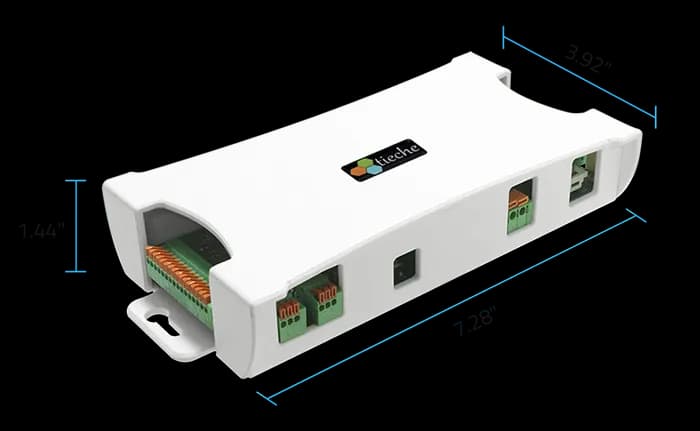

ECOM NANO is built with scalability in mind. Users can expand I/O up to 32 Inputs and Outputs by using ECOM NANO X1 Expansion module.
WIRELESS EXPANSION WITH WIFI MODULE
ECOM NANO is designed to provide cost-effective scalability. Additional I/O can be installed by using the X2 Expansion module .
OFFLINE CONFIGURATOR APP
ECOM NANO Offline Configurator App is an application that conveniently allows users to access, configure, and back up their ECOM NANO controllers while offline. The software tool runs on a desktop/PC or laptop, which gives users the flexibility to configure the controller without the need to physically connect to the controller. This saves time and reduces cost for initial startup and configuration.
TECHNICAL SPECIFICATIONS
Processor
- 536 MHz, high performance, 32 bit embedded microcontroller
Memory
- 256 MB operating RAM
- 256 MB NAND flash for operating system and controller configuration
Communications
- TCP/IP (Wired/Wireless)
- RS485
- GSM
- Bluetooth
- SNMP
Inputs
- 4 Thermistor /Dry Contact
- 4 Universal (0-5V, 0-10V, Digital)
Outputs
- 4 Analog (0-10V)
- 8 Digital (10V)
Expansion
- ECOM NANO is built with scalability in mind. Users can expand I/O up to 32 Inputs and Outputs by using ECOM NANO X1 Expansion module.
- Additional I/O can be installed by using the X2 Expansion module.

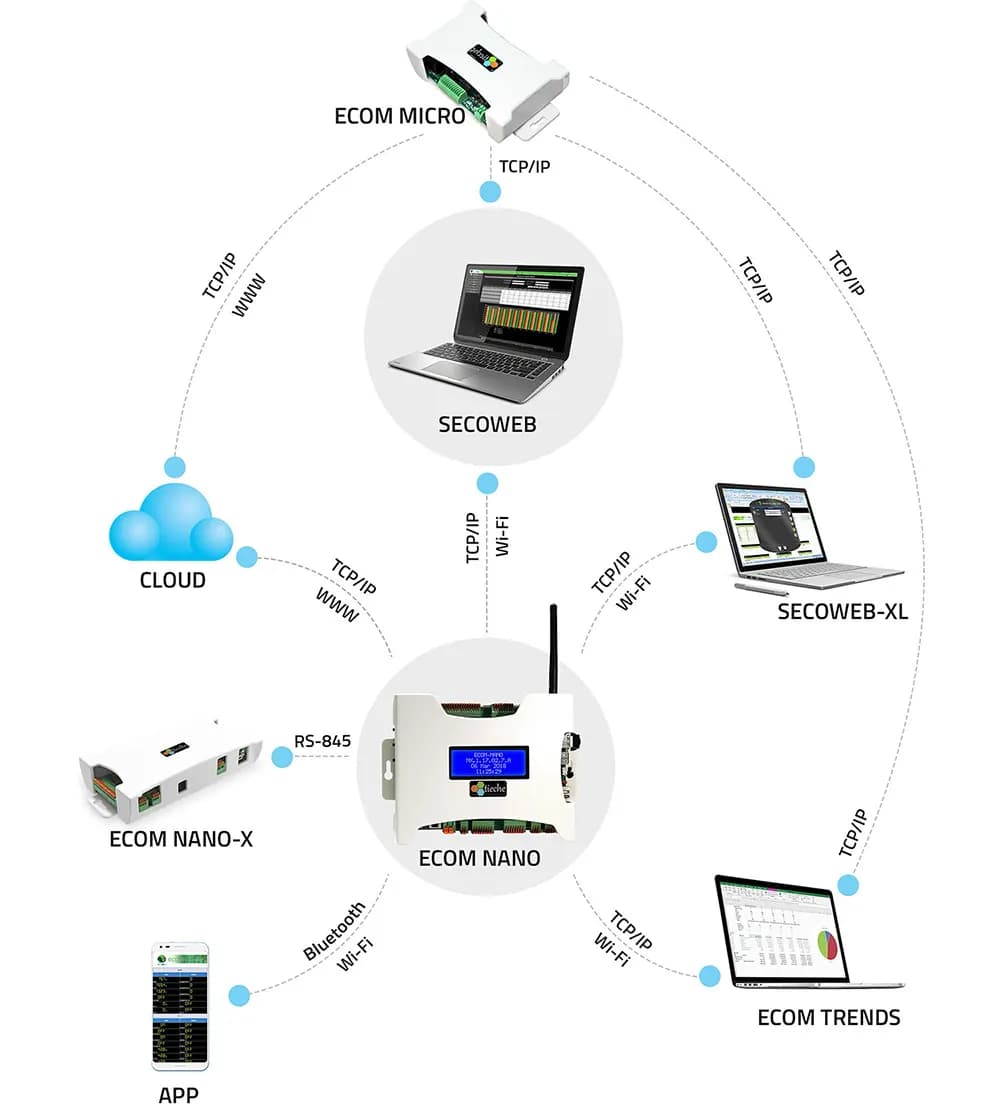

APPLICATION DIAGRAM
