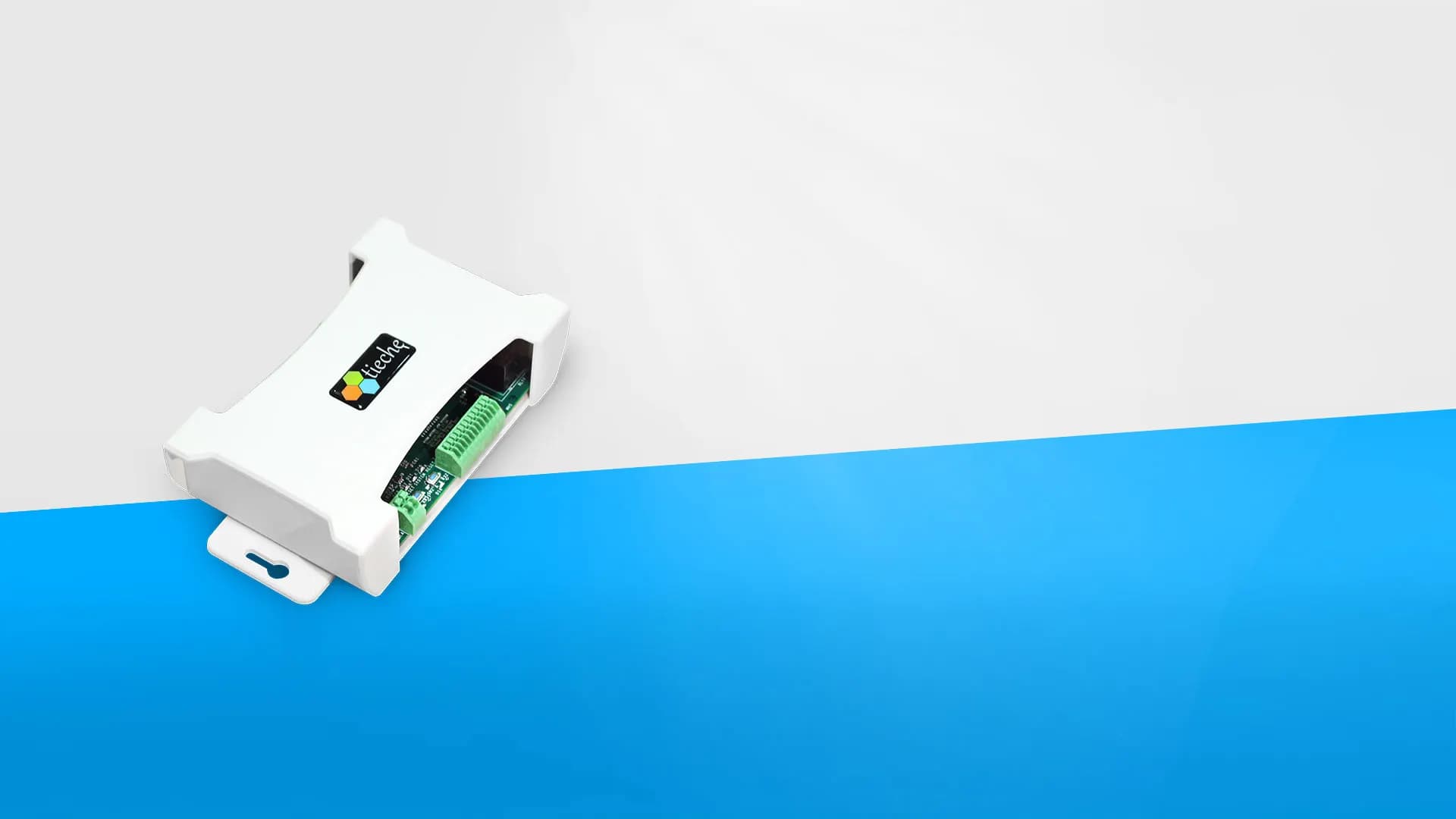

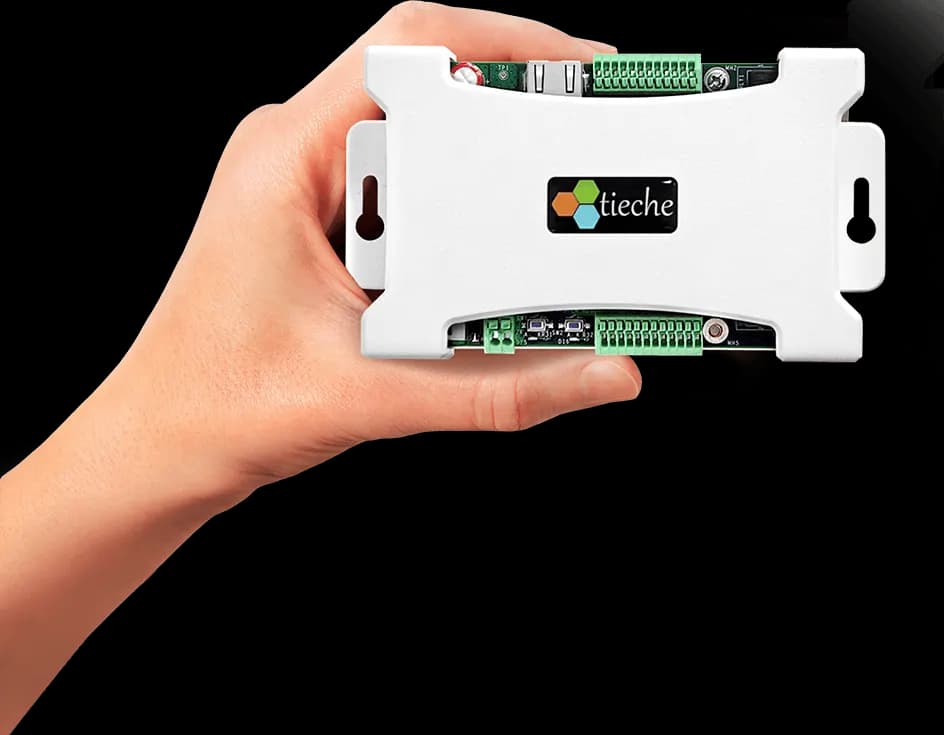

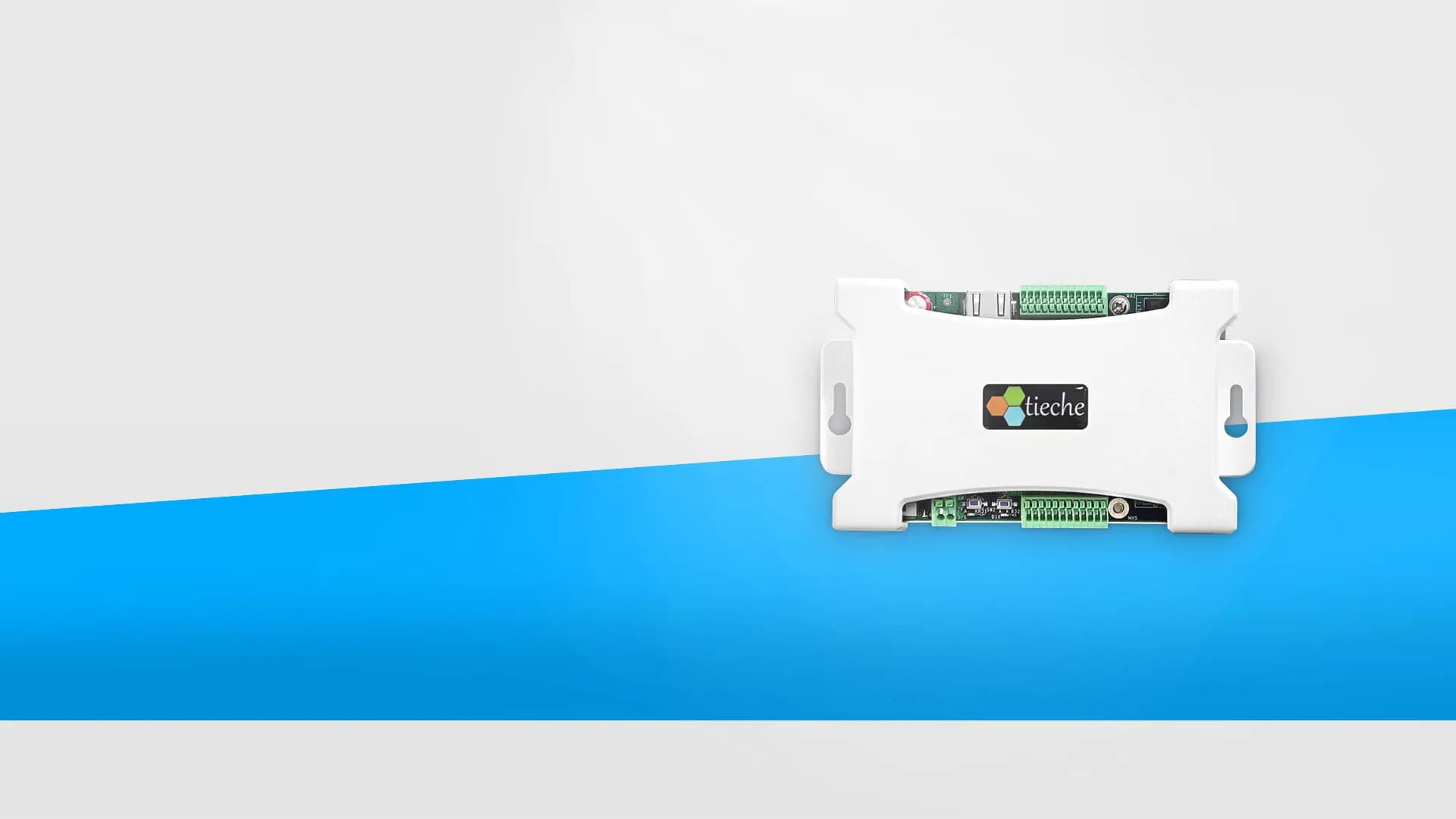

ECOM MICRO

  • IP Based Programmable Controller
  • Cost Efficient and Powerful
  • Advanced Control Logic

Scroll down

STANDALONE FACILITIES MANAGEMENT SYSTEM

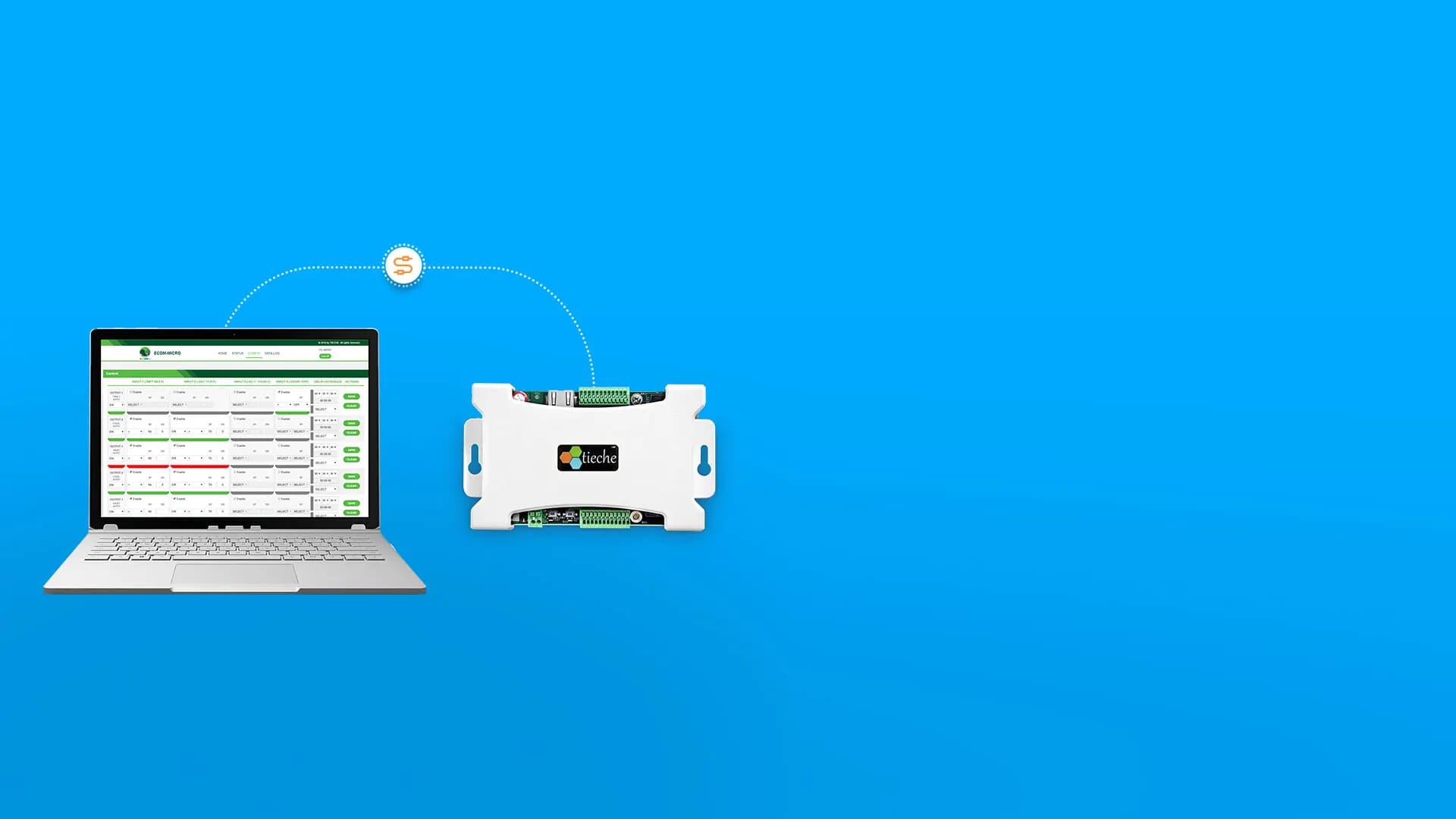

ECOM MICRO is an IP based programmable controller that can be used for a variety of control, monitoring and energy conservation applications. The user friendly interface and advanced design of ECOM MICRO provide simple setup, installation and programming options. This controller combines the convenience of web access with real-time onboard control and data logging for a cost-efficient and powerful facility management solution. ECOM MICRO can be used as a standalone facilities management system or integrated to any IT or BAS platform by means of XML communication.

BUILT-IN CONTROL LOGIC

ECOM MICRO incorporates a web server, analog/digital inputs, relay outputs, schedules, alarms and control programs. The ECOM MICRO serves static web pages with dynamic data updates. This controller is technology rich with built-in Ethernet-ready hardware and TCP/IP stacks that enable the controller to be accessible across a LAN and the internet. It is preloaded with HTML and XML data exchange technology. The built-in control logic allows for control of digital channels with complex programming conditions. The system supports data logging as well as email notification.

Inputs

  • 4 Universal Inputs

Outputs

  • 4 Relay Outputs

COMMUNICATION

  • TCP/IP (IPv4/IPv6)

TECHNICAL SPECIFICATIONS

DOWNLOAD USER MANUAL

Processor

  • 250 MHz, 32 bit embedded microcontroller

Memory

  • 512 KB operating RAM
  • 2 MB Flash for firmware and controller configuration

Supply Voltage

  • 12 VDC +/- 5%, 1.0 Amp

Communications

  • IEEE 802.3/802.3u Ethernet 10/100 BaseT

4 selectable voltage/binary/thermistor inputs

  • 12 bit A/D converter
  • Binary: Dry contact
  • 10K, thermistor (Type-II)
  • 0 – 5/10 VDC analog
  • 10V digital
  • 11.7V over voltage protection

4 relay outputs

  • SPDT
  • Contact rating: 7.0 Amps, 250 VAC
  • 7.0 Amps, 30 VDC

Real Time Clock

  • +/-1 minute per month

Memory Backup

  • 10 years for Flash memory

Power wiring

  • Stranded copper wire
  • 18 to 22 (AWG)
  • 0.75 to 0.34 (mm 2 )

Inputs/Outputs wiring

  • Stranded copper wire
  • 20 to 24 (AWG)
  • 0.50 to 0.25 (mm 2 )

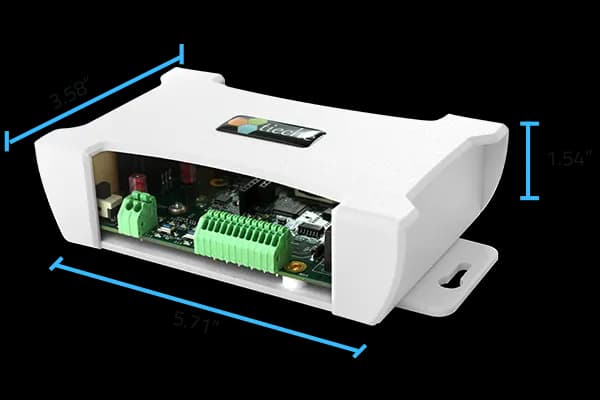

Dimensions

  • 5.71” L x 1.54” W x 3.58” H

Mounting

  • 2 mounting holes 5.71” apart
  • Screw: M3 screw with 1“ length

Weight

  • 0.5 lbs

Enclosure

  • Material: ABS Plastic

Ambient Limits

  • Operating: -4°F to +131°F
  • Storage/Shipping: -40°F to +140°F
  • Humidity: 10% to 90% RH non-condensing

User Interfaces

  • User friendly web interface
  • Email alerts
  • Power on LED
  • Heart beat LED
  • Digital output LED

Protocol

  • TCP/IP (IPv4 and IPv6)
  • DHCP: Dynamic Host Configuration Protocol
  • XML: Extensible Markup Language
  • SMTP: Provides standard email communication for broadcasting email alarms. Supports SSL security

User Access

  • Password protected user access

4 Schedules

  • Daily/Weekly/Monthly

4 Alarms

  • Alarms with email notification

Data logging

  • On board memory data log (2048 samples per I/O)
  • CSV download option
  • Data log graphing capability

Alerts

  • Controller power on alert email
  • Alarm email notification
  • Alarm notification on web pages

Recovery

  • Factory default reset option

Warranty

  • 2 Years

Certification

  • RoHS
  • CE
  • FCC Part 15 – Subpart B – Class A

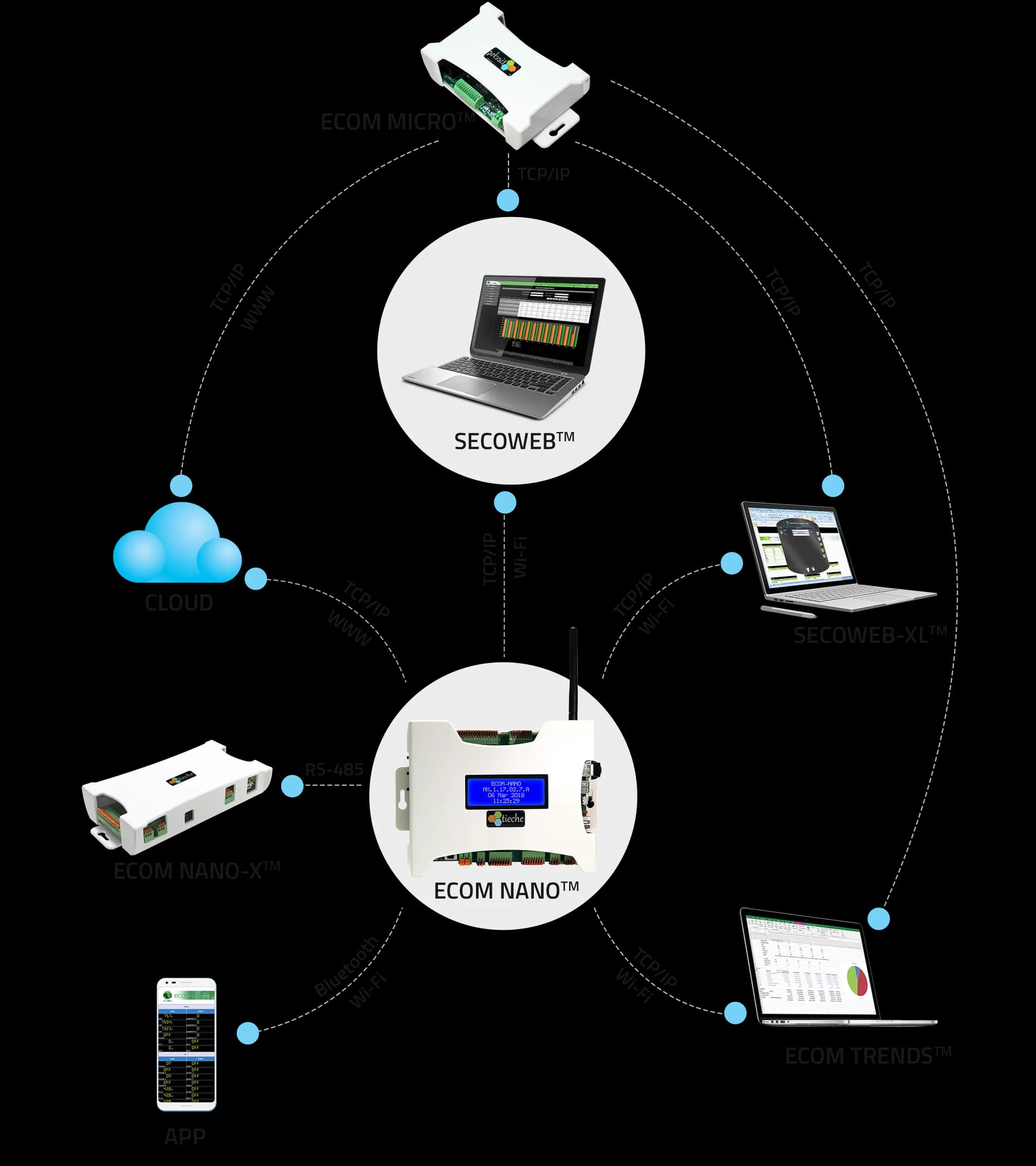

APPLICATION DIAGRAM
